Metalite® 3100

System Components

The Metalite 3100 system typically consists of the following components, as determined by specific code and performance requirements.

A Mounting System

B Proprietary Continuous Interlocking Extrusions

C Concealed Integral Gaskets

D Aluminum Composite Material (ACM) or FR core Metal Composite Material (MCM) in Many Color Options

E Panel Stiffeners per Delegated Design

F Corner Reinforcement “l” Gussets

G Open Cell Foam Baffles

H Silicone Sealant

A B C D E F G H

Overview

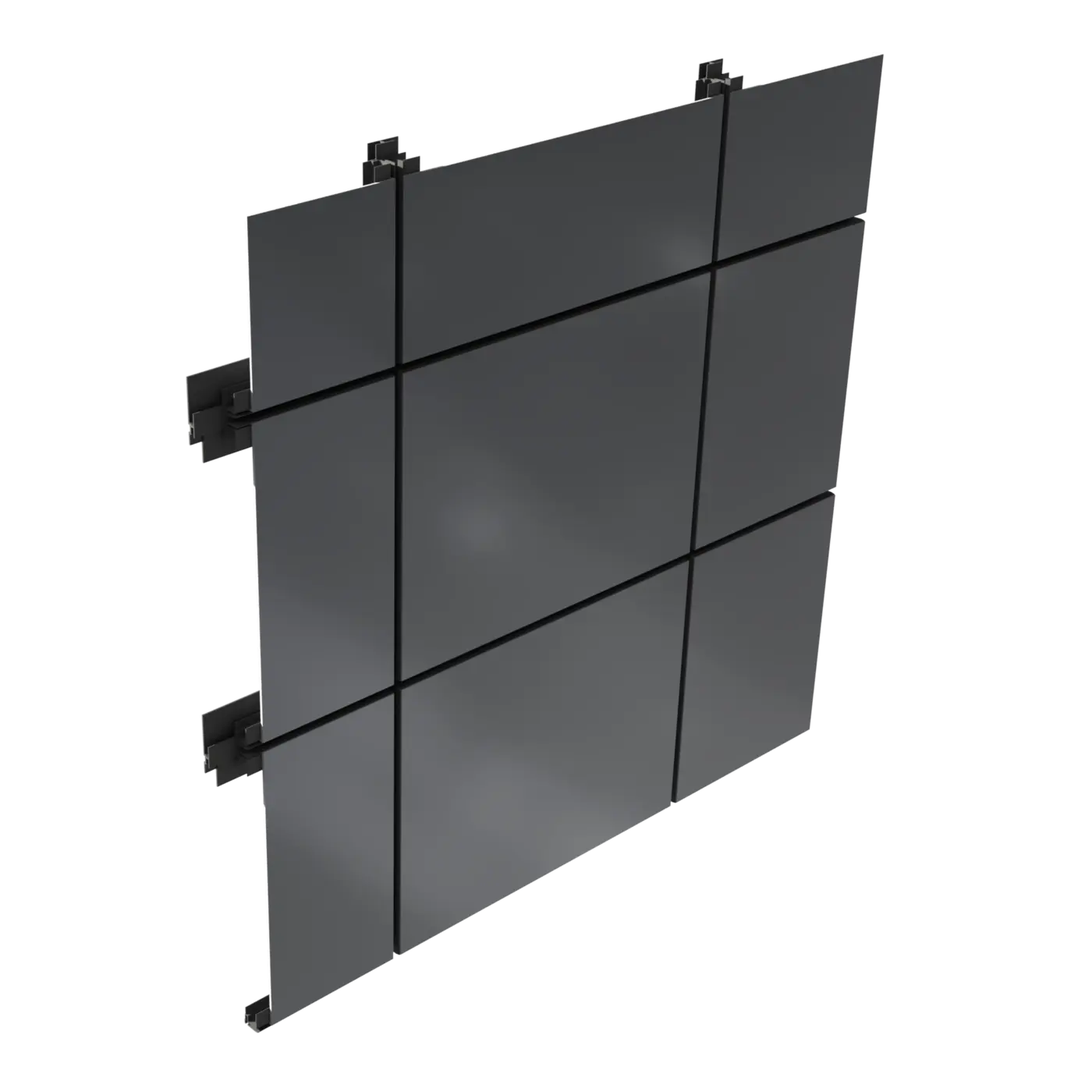

Metalite® 3100 is a high-performance vertical wall panel system, built for use in the most demanding applications. Designed, engineered, and tested to the highest performance criteria, this system provides unrivaled structural integrity in a lightweight package(2.89 pounds per square foot / 1.31 kg per square foot). Metalite 3100 is custom-fabricated with either Aluminum Composite Material (ACM) or Metal Composite Material (MCM) — known for its flatness, ease of fabrication, and clean, sleek appearance — giving your next project a head-turning aesthetic.

Proven, durable architectural coatings including Kynar®, as well as highly-durable natural metals like anodized or brushed aluminum, stainless steel and copper ensure that the Metalite 3100 system will last for the life of the building.

System Features

Engineered For Strength

Metalite 3100 is designed, engineered and tested to the highest performance criterial — providing unrivaled structure integrity for a panelization system.

Built-In Moisture Management

This system incorporates a route-and-return fabrication technique with continuous interlocking extrusions. The concealed, integral gaskets mean the panel joints to not require field-applied sealants.

Diverse Finish Options

Proven, durable architectural coatings including Kynar®, and natural metals options like anodized or brushed aluminum, stainless steel and copper ensure that the system will have a beautiful finish for the life of the building.

Tremco CPG Compatibility

As part of Tremco Construction Products Group (CPG), Dryvit panel systems have the added benefit of tested, proven compatibility with many Tremco sealants, air barriers and waterproofing products, and Willseal expansion joints — to help create truly comprehensive building enclosures.

Lightweight Metal Panel

Get the unrivaled structural integrity of a metal panel system in a lightweight package(2.89 pounds per square foot / 1.31 kg per square foot) with Metalite 3100.
