Metalite® Metal Panel Systems

Metalite® architectural metal wall panels give architects and specifiers the design freedom to create high-performance metal facades with lasting visual appeal. Our prefabricated metal composite material (MCM) and engineered aluminum façade panels combine clean aesthetics, durable finishes and fire-tested performance—including NFPA 285 and S134 testing—to stand up to harsh weather while supporting bold facade design. Now including standing seam roofing options, Metalite extends from façade to roof, expanding the portfolio from wall cladding to complete envelope design for a more coordinated building envelope.

Our Metalite engineered aluminum panel systems leverage proven technology from Kalzip®, now part of Tremco CPG, for North American new construction under the Dryvit Metalite brand. These systems encompass rainscreen assemblies and standing seam wall panels, with perforated options, for a wide range of facade applications. Metalite Standing Seam Roof Panels bring design continuity and performance to the roofline.

From ground-up commercial projects to façade restoration, each system is engineered to help design teams specify with confidence and coordinate a unified, connected building envelope.

Find Your Metal PANEL Expert

Explore MCM and Engineered Aluminum Façade Panels Built for Distinct Design Goals

Metal Composite Material (MCM) Panels

Bold and built to make a statement. Metalite metal composite material (MCM) panels pair two thin metal skins with a fire-retardant core to deliver smooth, large-format cladding that holds its shape and brings a clean, modern look to any façade, with distinct systems engineered to meet a range of performance and detailing demands.

Engineered Aluminum Façade Panels

Where design ambition meets proven engineering. These advanced single-skin aluminum systems offer exceptional formability, rainscreen flexibility and easy panel replacement. Engineered by Kalzip—the globally respected facade brand now part Tremco CPG and the Metalite portfolio from Dryvit—they bring a legacy of European engineering excellence to projects across the US and Canada.

Aluminum Roof Panels

Offering formability, weathertight performance and lasting corrosion resistance, Metalite roof panels allow design teams to coordinate wall and roof aesthetics along with roof-to-wall transitions. Vulkem Roofing Series, also part of the Tremco CPG portfolio, offers compatible, tested weatherproofing underlayments, delivering a continuous building envelope that meets performance goals.

Choose Your Perfect Metal Panel

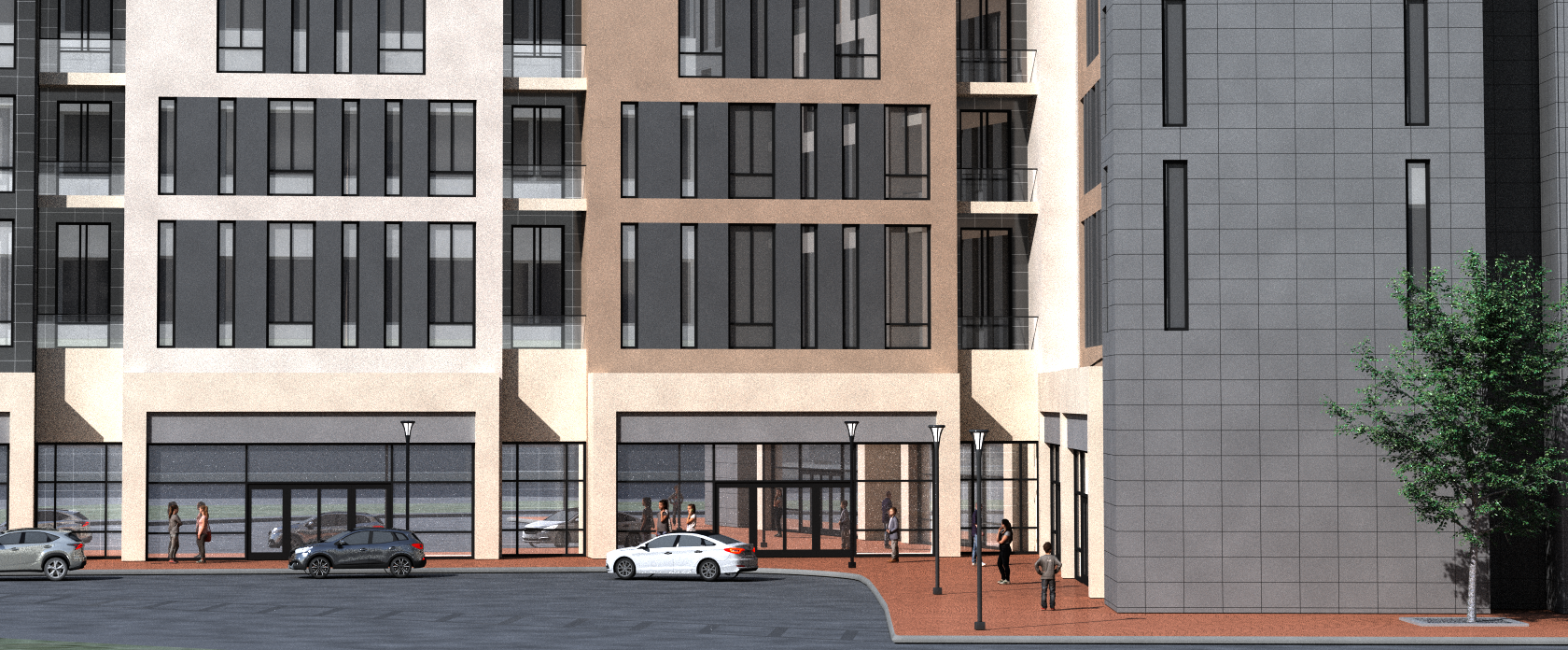

Metalite 1100 MCM Panel
Match existing high-rise façades with sleek additions that maintain a cohesive aesthetic. Learn More

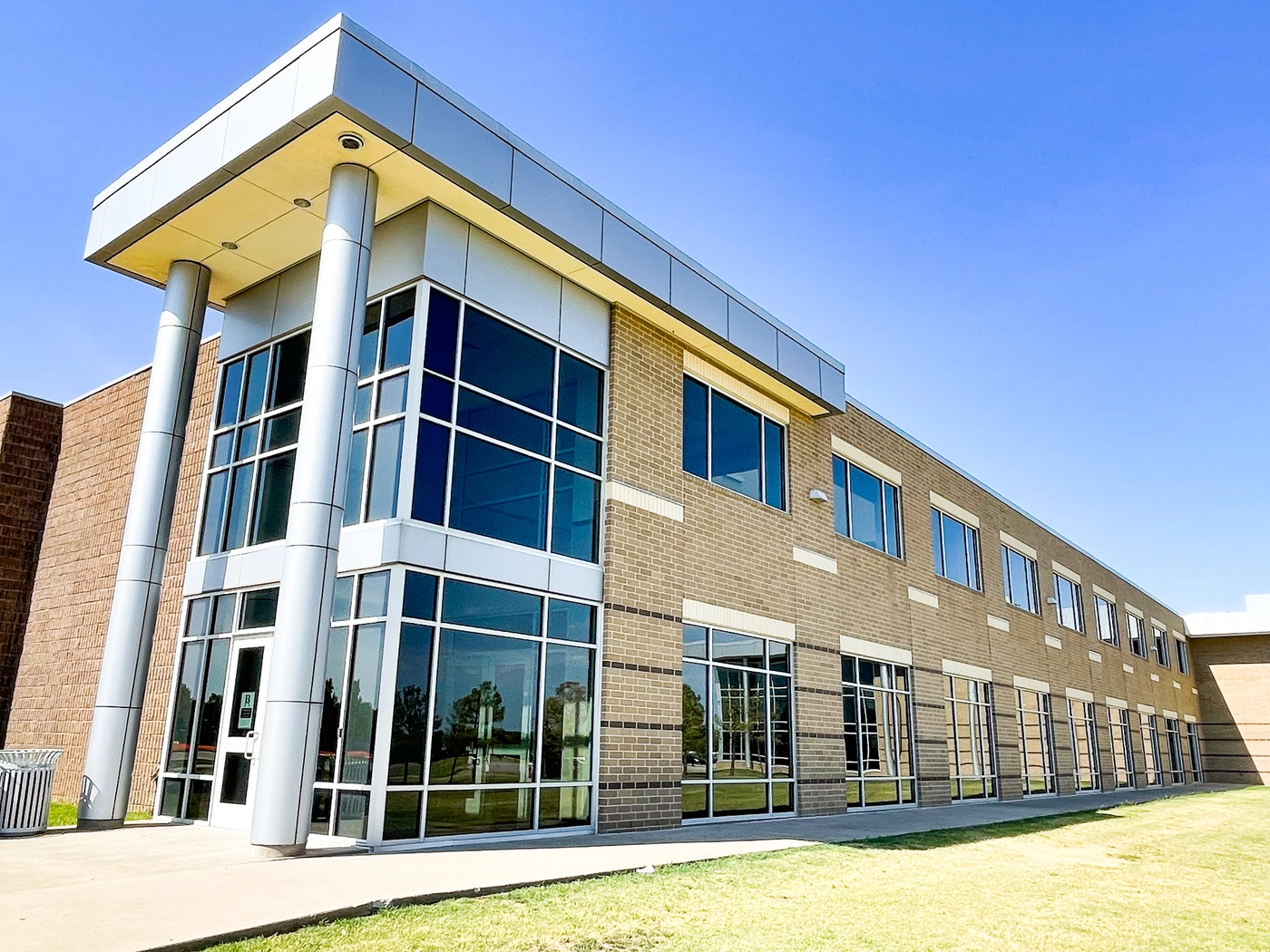

Metalite 3100 MCM Panel
Achieve a refined façade with custom fabrication and a high-quality finished appearance.

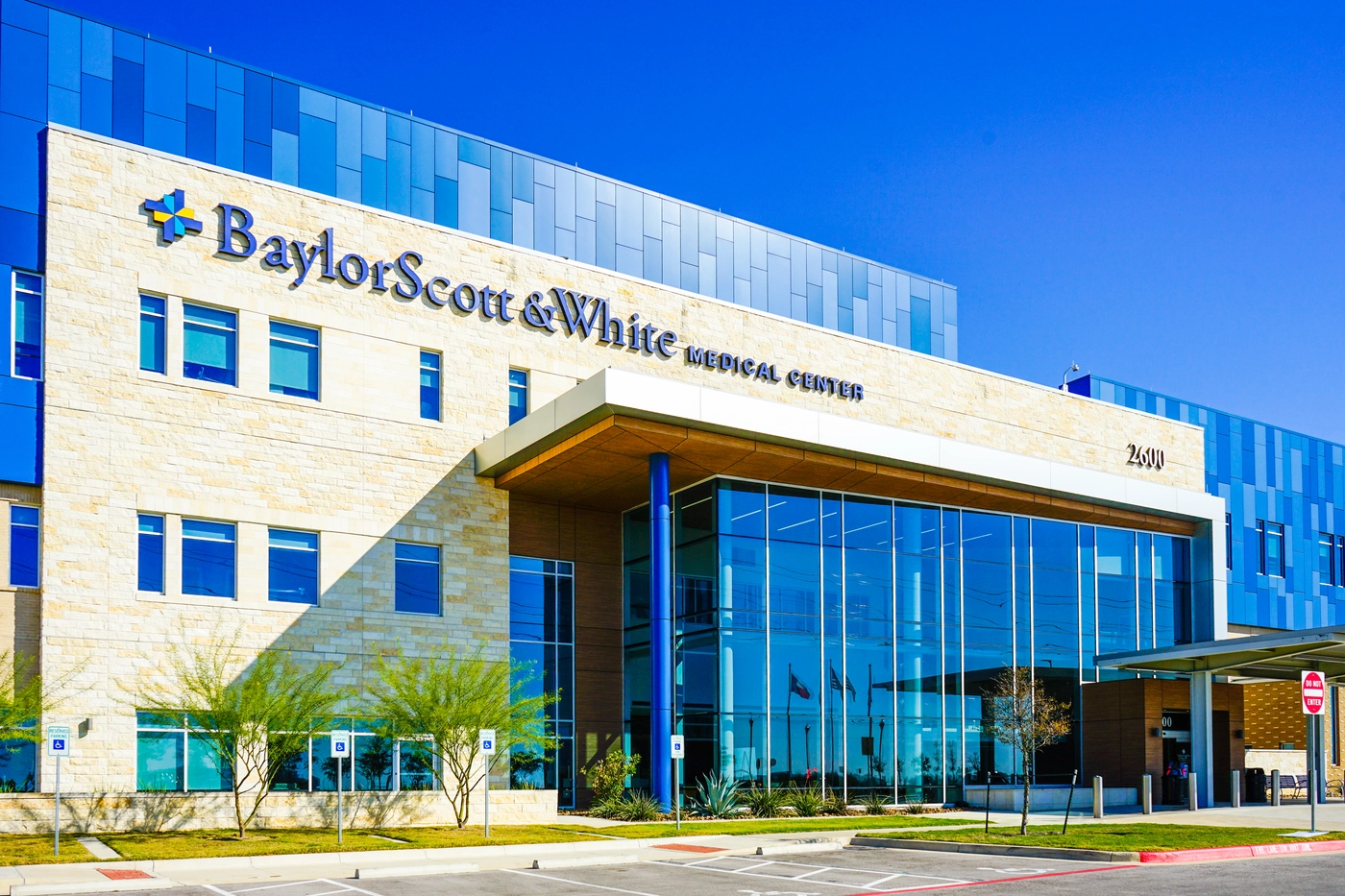

Metalite 8000 MCM Panel
Specify a code-listed, NFPA 285-tested rainscreen with drained, back-ventilated performance. Learn More

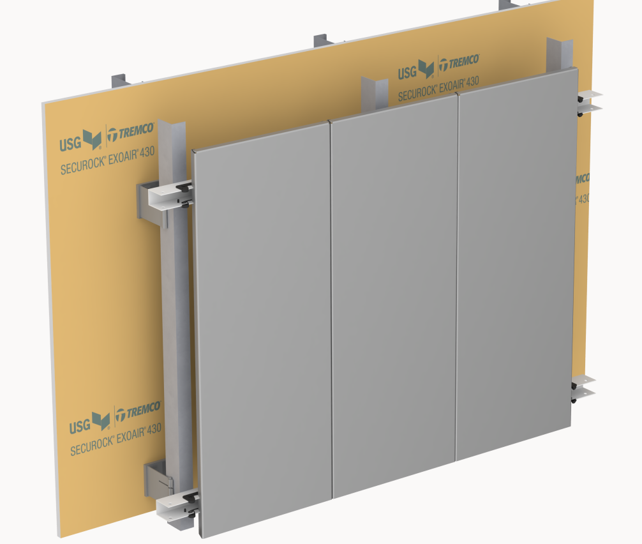

Metalite FC Rainscreen Panel
Deliver high fire performance for multi-level structures without sacrificing design flexibility. Learn More

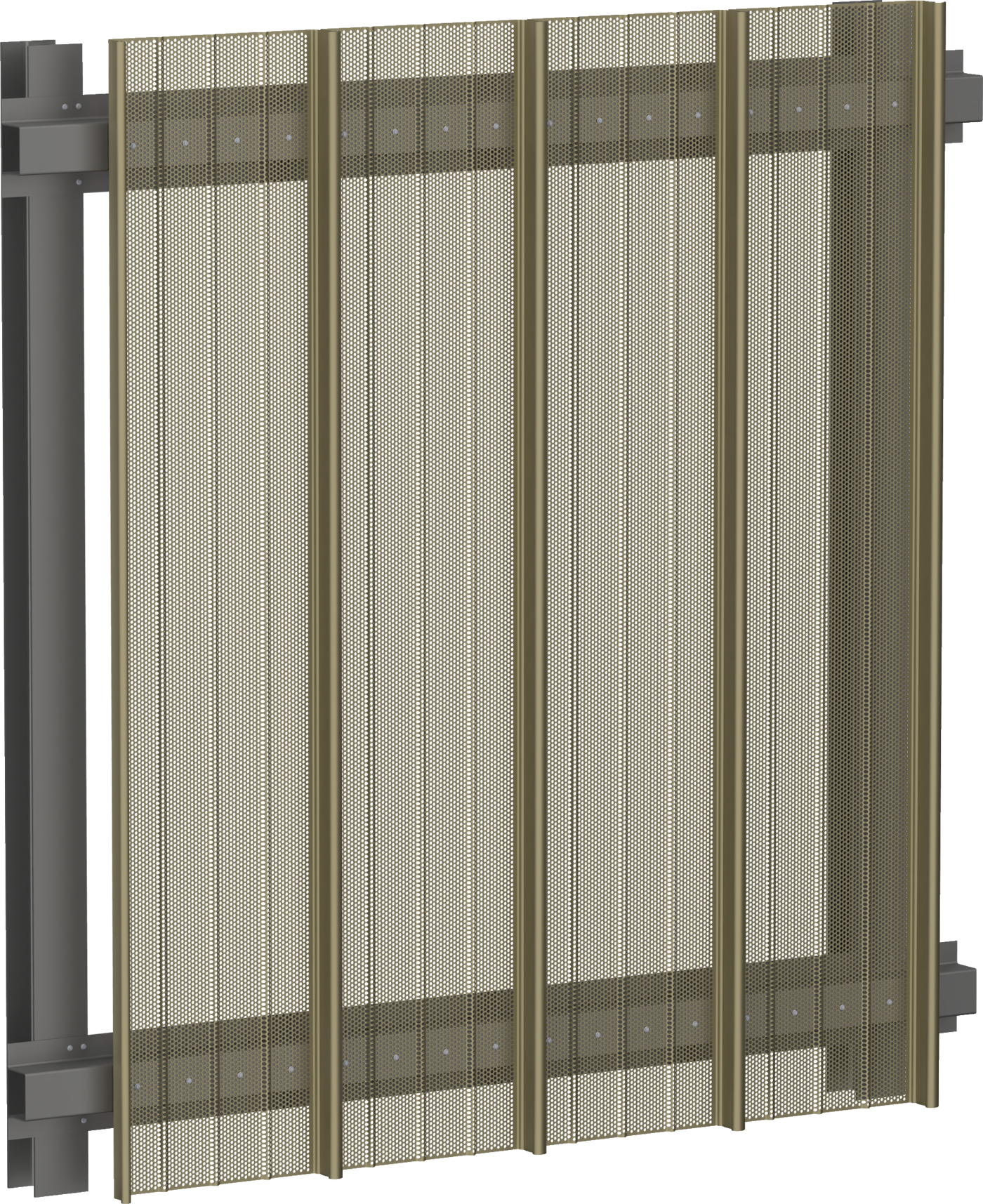

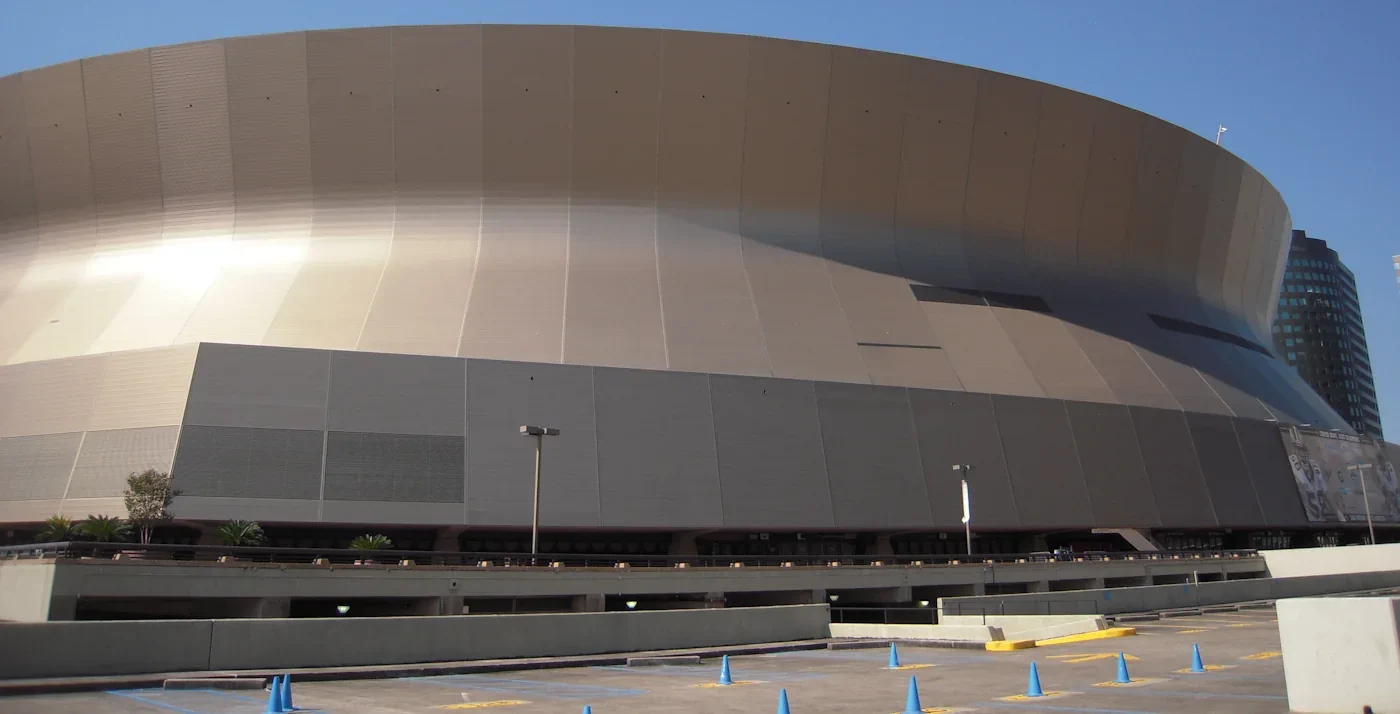

Metalite Perforated Façade Panel

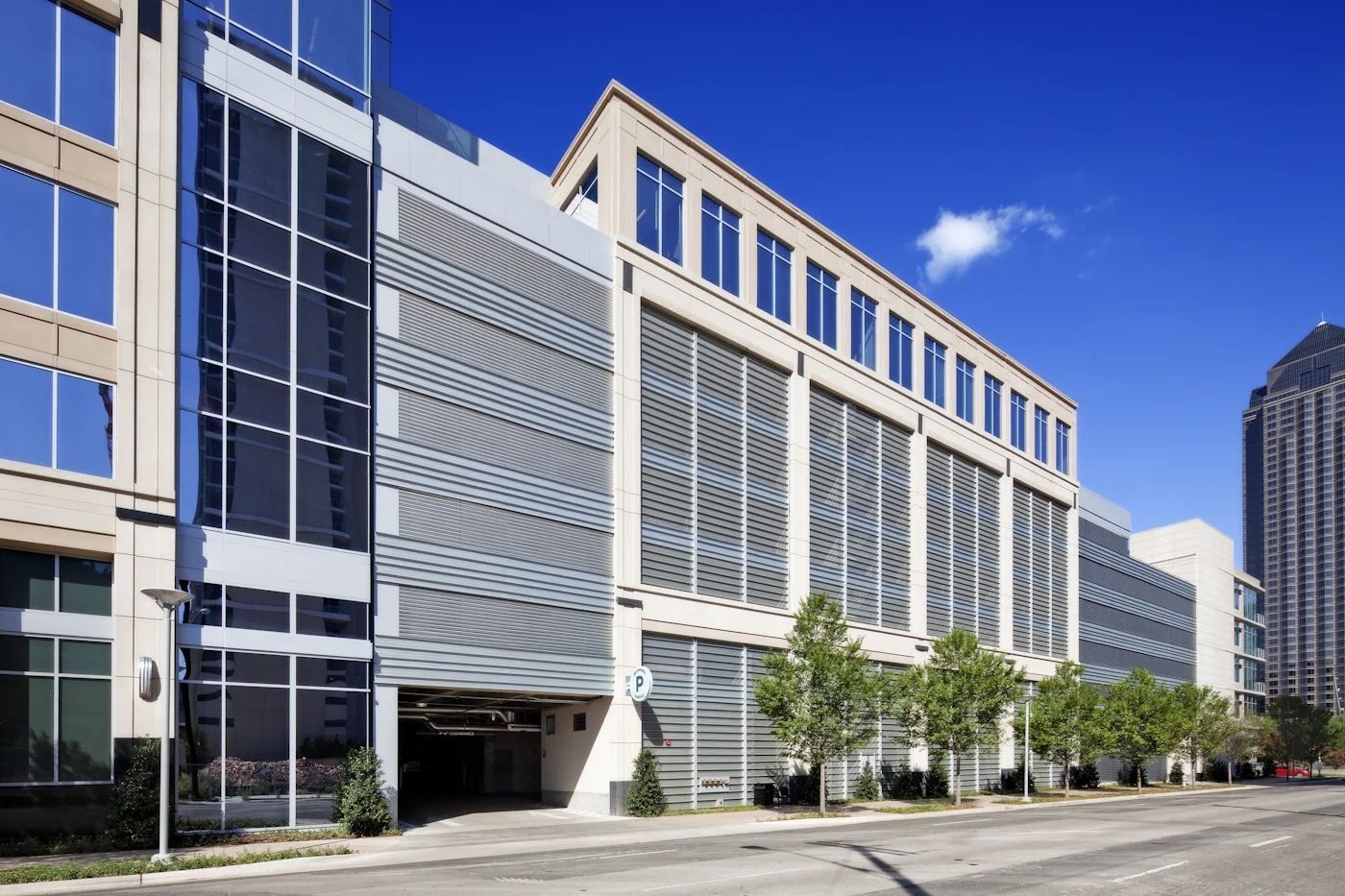

Screen unsightly areas, manage solar shading and elevate parking garage design with one system.  Rainscreen and standing seam profile options available. Learn More

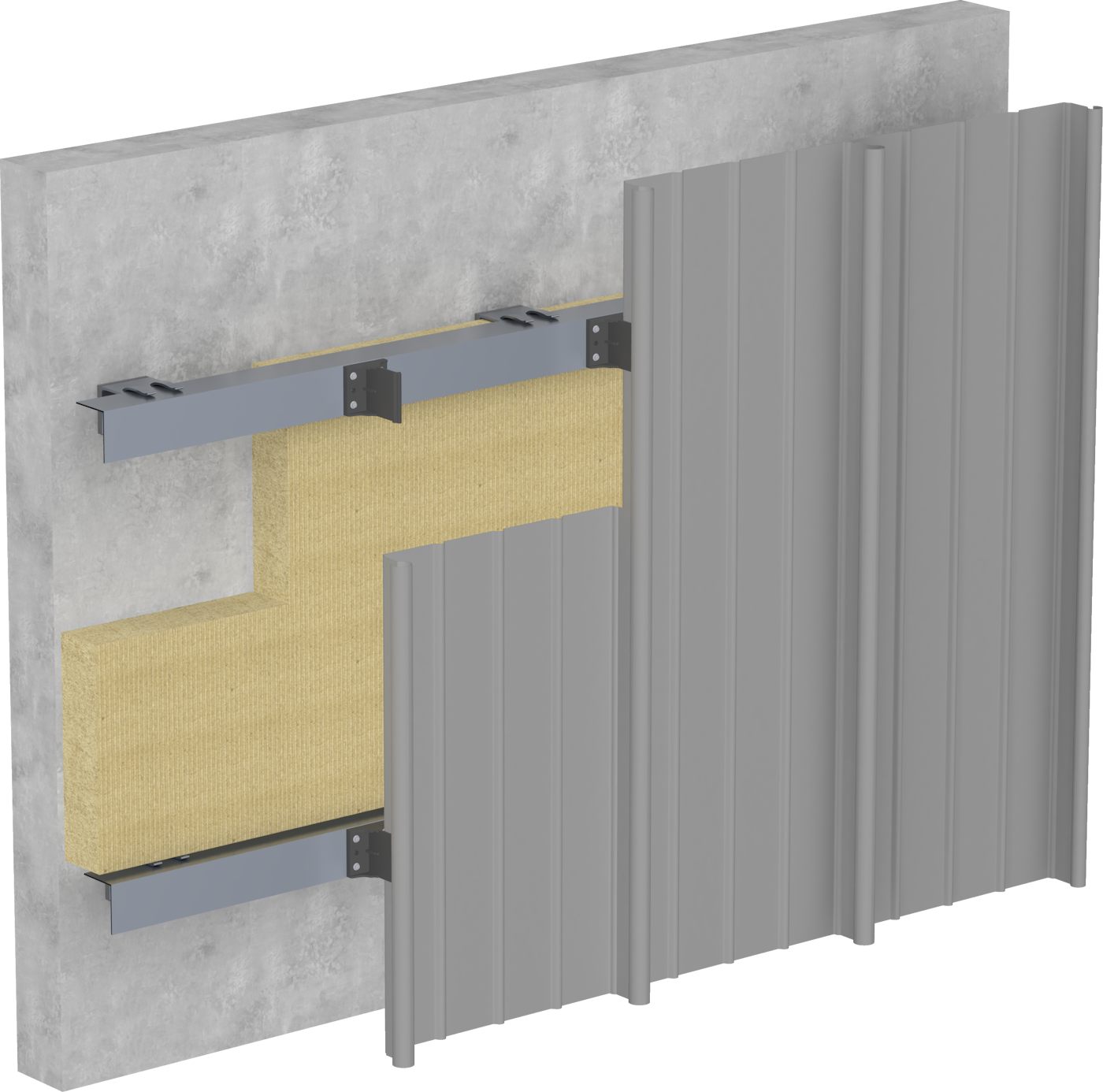

Metalite Standing Seam Façade (SSF) Panel
Achieve striking vertical or horizontal fold lines and a flawless, weathertight finish in a wide range of colors. Learn More

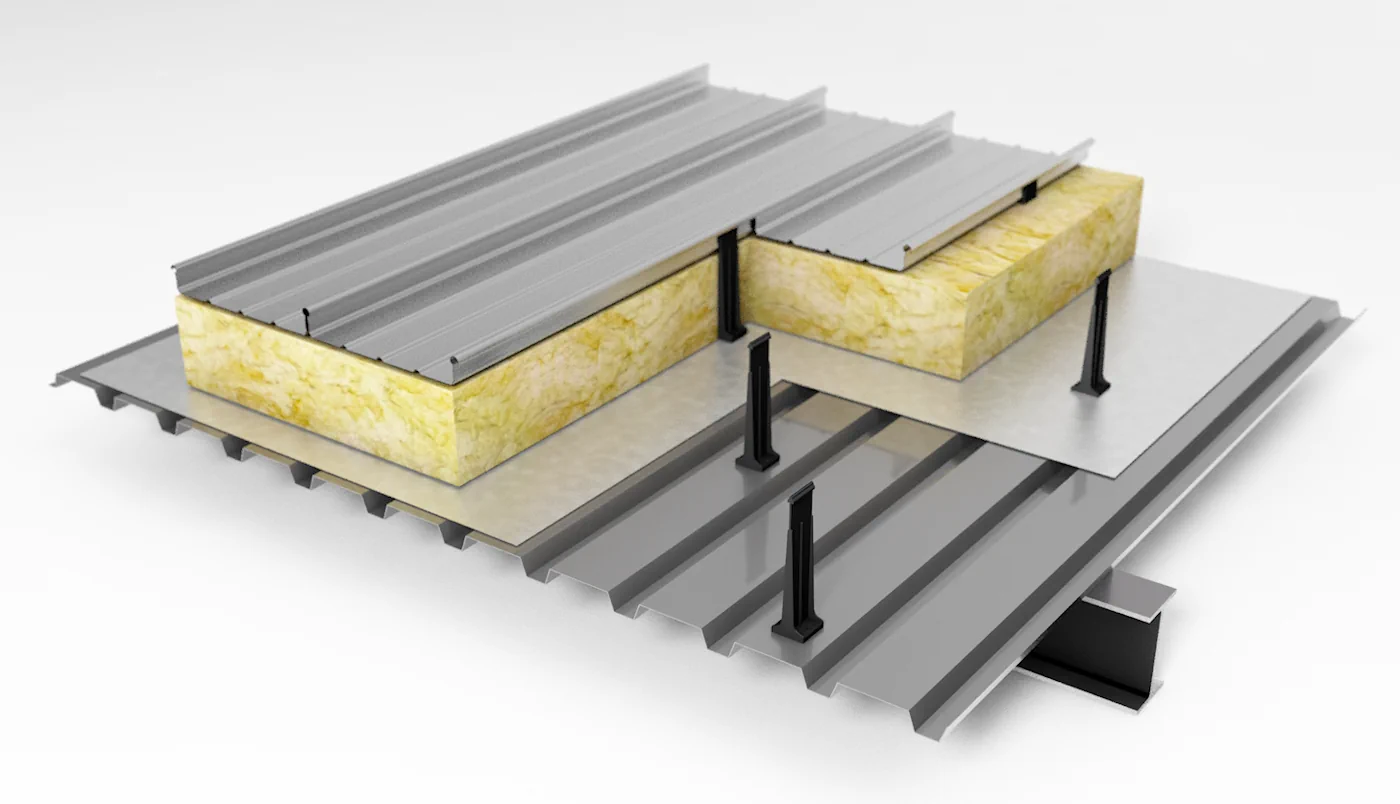

Metalite Standing Seam Roof (SSR) Panels
Shape clean lines and custom geometries with a code-compliant standing seam roof in bold colors, finishes and textures. Learn More

Metalite Brochure

See the Full Metalite Lineup From Facade to Roof

Every project deserves the right system. Explore the complete Metalite portfolio, from MCM panels to engineered aluminum and standing seam roofing, in one resource. Review system benefits, finish and color options and key performance criteria to evaluate each panel family and identify the best fit for your design intent, envelope requirements and budget.

Download the Metalite Brochure

Metalite Metal Facade Panels: Frequently Asked Questions

Architectural metal wall or facade panels are engineered metal sheet systems that clad a building's exterior to protect the structure and shape its appearance. Metalite offers two main families: metal composite material (MCM) panels and engineered aluminum “single-skin” panels. Choose based on look, performance, customization needs, installation type and budget.

MCM panels bond two thin metal skins to a fire-retardant core for a flat, rigid, large-format look. Single-skin panels use one solid aluminum sheet for high formability and easy individual panel replacement. Metalite offers both, so you can match the system to your design and performance goals. Unlike most single-skin systems, Metalite single-skin panels are part of an engineered assembly featuring a patented fix click rail attachment system.

Metalite gives you two rainscreen options. The single-skin Metalite FC Rainscreen uses a patented Fix Click rail for flexible installation and easy panel replacement. The MCM Metalite 8000 is a drained, back-ventilated rainscreen with a clean, rivetless look. Both systems maintain a high level of cavity ventilation ensuring moisture has a chance to dry or drain.

Facade panels stop at the roofline, and coordinated flashing handles the transition. At parapets, panels terminate below a coping or counterflashing tied to the roof membrane. At roof-to-wall junctions, base flashing such as Tremco ExoAir 110AT laps  over the wall barrier so water sheds outward. All these details can be coordinated with our compatible Vulkem Roofing Series liquid-applied roof waterproofing membranes and underlayments and Metalite Standing Seam Roofing (SSR) systems.

Perforated facade panels control light and airflow while adding a partially transparent, veiled effect. Metalite Perforated Panels offer free areas from 16 to 51 percent, making them ideal for shading, sunscreens, parking garages and mechanical enclosures. They pair easily with solid facade surfaces for a cohesive look.

Standing seam facade panels suit projects that need a seamless, weathertight look that carries from wall to roof. Metalite Standing Seam is a multi-use aluminum panel with high formability and vertical or horizontal seam lines. It offers strong weather resistance, low maintenance and a broad range of finishes. Metalite offers compatible standing seam roof panels to support building designs that blend metal wall to roof for a bold, contemporary aesthetic.

Quality architectural metal panels commonly perform for 30 years or more, depending on metal, finish, climate and installation. Metalite uses corrosion-resistant aluminum and durable coatings built for long-term protection. Combined with Tremco air and water barriers, a Metalite 8000 system can have up to a 20-year warranty.  Contact your local Metal Panels Rep to confirm coverage.

Several Metalite systems are also well-suited to façade restoration, particularly where you want to restore building envelope performance, or refresh or reclad an existing structure with a clean, modern aesthetic.

Technical FAQs for Architects and Specifiers

For teams moving from concept to specification, the questions below cover the details that shape a sound facade. Compare MCM and single-skin systems, review rainscreen performance and parapet transitions, and see how Metalite panels integrate with the air and weather barrier across the building envelope.

MCM panels bond two thin metal skins to a fire-retardant core, producing flat, rigid, large-format panels as found in Metalite 1100, 3100 and 8000. Engineered Aluminum are single-skin panels that use one solid aluminum sheet for high formability and individual panel replacement. Metalite single-skin systems include the FC Rainscreen with patented Fix Click attachment, Standing Seam with vertical or horizontal seam expression, and Perforated Panel offerings within each system for airflow and light control. Specify MCM for crisp, monolithic elevations and single-skin aluminum where formability, serviceability and installation flexibility matter. Consider aesthetics, layout, wind loads, moisture strategy, fire requirements and how the cladding meets the air and weather barrier before finalizing the system.

It depends on your design intent and performance targets. MCM systems like Metalite 8000, 3100 and 1100 deliver smooth, large-format cladding for a clean, modern look, while engineered aluminum façade systems such as Metalite FC Rainscreen, Standing Seam and Perforated offer greater formability and rainscreen flexibility. When your design calls for a connected, continuous metal envelope, Metalite Standing Seam Roof (SSR) panels allow you to extend the same aesthetic to the roofline, carrying color, finish and profile from façade to roof. Each system offers the technical detail, drawings and finish options design teams need to specify with confidence.

Moisture control varies by system, so match it to your wall assembly. Metalite 1100 uses sealant and backer rod for barrier-style joints when paired with a compatible air and weather barrier. Metalite 3100 uses route-and-return fabrication with continuous interlocking extrusions and concealed integral gaskets, so joints need no field-applied sealant. Metalite 8000 is a drained, back-ventilated ACM/MCM rainscreen with joint splines and a rivetless design at roughly 2.29 lb/sf. The Metalite FC Rainscreen manages water within a ventilated cavity behind the panels. Confirm the joint strategy with your wall consultant and Metalite Metal Panel Rep based on climate, exposure and the primary water-control layer in your assembly.

Metalite panels serve as the exterior cladding, while the air and weather barrier behind them maintains envelope continuity. As part of Tremco Construction Products Group, Metalite systems are engineered for tested compatibility with Tremco sealants, air barriers, and waterproofing products, supporting a coordinated assembly. All systems combine with Tremco air and water barriers to create a complete enclosure warranty.

Facade panels terminate at the roofline, and coordinated flashing handles the transition rather than the panels themselves. At parapets, panels typically stop below a coping or counterflashing that ties into the roof membrane. At roof-to-wall transitions, base flashing from the roofing system laps behind the wall's water-resistive barrier so water sheds outward. Metalite Standing Seam is particularly useful here, since its high formability supports clean, seamless wall-to-roof detailing using familiar standing seam techniques and vertical or horizontal seam lines. The FC Rainscreen accepts approved Dryvit/Tremco flashing to maintain envelope continuity. Coordinate these interfaces and barrier laps early with your roofing scope to keep the assembly watertight. Tremco’s Vulkem Series liquid-applied roof waterproofing membranes, underlayment and metal standing seam roofing systems help ensure a continuous, compatible roof-to-wall connection with a single-source warranty.

Different Metalite systems address different feature conditions. Metalite 1100 and 8000 are well-suited to canopies, architectural fins, beam wraps and column covers, thanks to mechanically fastened perimeter extrusions that create a stronger, durable edge for exposed three-dimensional shapes; barrier-style joints use compatible Tremco sealants and backer rods. For sunscreens, parking garages and mechanical enclosures, Metalite Perforated Panels provide shading and partial transparency while controlling light and airflow, with free areas from 16 to 51 percent. Perforated panels are available in rainscreen,  and standing seam profiles, suit severe or high-moisture environments including salt spray, and integrate easily with solid facade surfaces. Confirm panel sizes, free-area selection and stiffener requirements with delegated design.

The Metalite FC Rainscreen mounts aluminum panels on a patented Fix Click modular click rail that secures panels for quick, efficient installation. Because the system is non-directional, crews can install panels to suit site conditions, which helps in tight or complex areas. The same design allows you to adjust or replace individual panels during and after installation, improving field quality control and long-term serviceability

Performance and coverage vary by system, so review the specific terms for your project. The FC Rainscreen is tested to the CAN/ULC S134 fire standard and supports individual panel replacement via its Fix Click rail. The MCM systems are notably lightweight: Metalite 3100 is about 2.89 lb/sf and Metalite 8000 is about 2.29 lb/sf, both reducing structural load. Metalite 8000 carries a market-leading warranty of up to 30 years on the metal finish, 10 years for delamination, and 5 years for fabrication workmanship. Metalite 8000 also carries its own ESR for structural performance and ESL for NFPA 285 fire performance ensuring complete ICC compliance. All Metalite systems are designed for tested compatibility with Tremco sealants, air barriers and waterproofing products.  Request current warranty and fire-test documents to confirm coverage for your assembly.

Both products use the same proven aluminum standing seam technology from Kalzip. The Metalite system serves architects and specifiers designing new commercial buildings, with a focus on envelope aesthetics and coordinated wall-and-roof design from concept through documentation. TremLock K-Zip, available on Tremcoroofing.com, serves building owners and facility managers retrofitting or replacing aging roofs. For more information about metal solutions for roof restoration, contact your local Dryvit Metal Panels Representative.

Learn More About MCM and  Engineered Aluminum Facade Panels


Here are the similarities and differences between exterior metal wall panels (including MCM and ACM panels) and EIFS with metallic finishes.
The Differences between Exterior Metal Wall Panels and Metallic Finishes

Here are the similarities and differences between exterior metal wall panels (including MCM and ACM panels) and EIFS with metallic finishes.

Read More
Discover the versatility of Metal Composite Material (MCM) systems in modern architecture, from fabrication to design and code considerations.
Understanding MCM Panels in Building Design

Discover the versatility of Metal Composite Material (MCM) systems in modern architecture, from fabrication to design and code considerations.

Read More
